Display

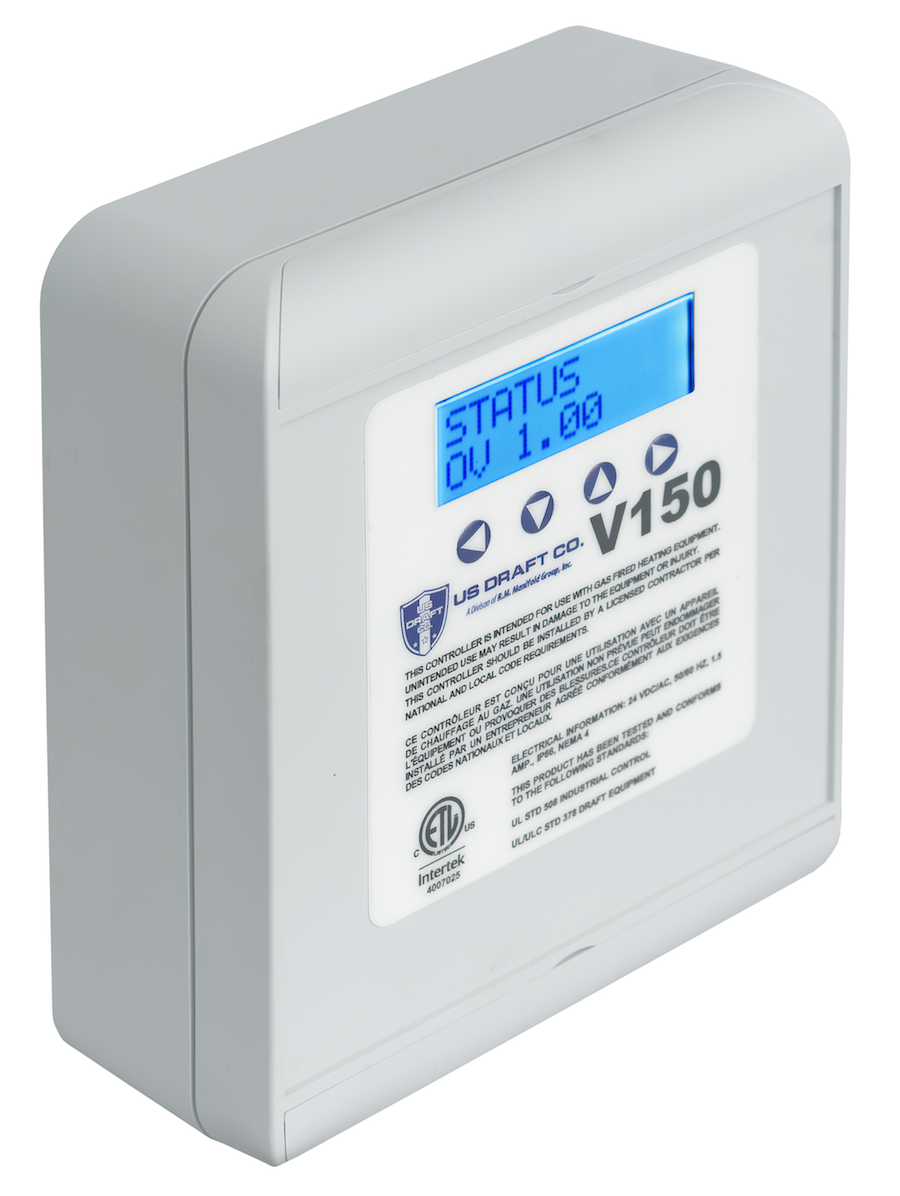

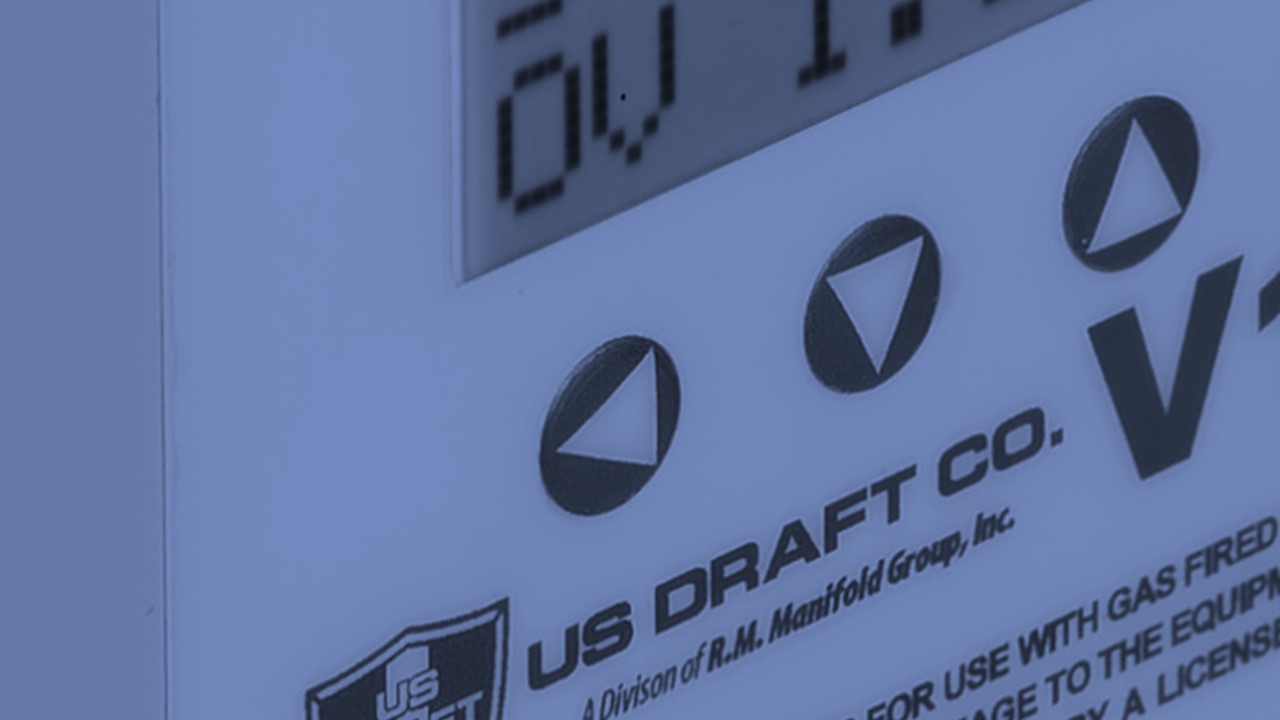

Using a simple, 4-button interface and LCD display, the V150 can interlock with up to 2 appliances and can operate up to 2 applications listed below:
ODCS – The OverDraft Control System maintains a constant pressure in the exhaust common manifold or individual chimney/vent via an inline single or multi-blade damper.
PAS – The Pressure Air System maintains a constant pressure in the mechanical room or ducted supply air.
Data Sheets
Control Options
V150 Constant Pressure Controller
- - Up to 2 Appliances
- - Up to 2 Applications
- - True bi-directional (+/- 1.0" wc)
- - 4-button LCD screen
V200 Constant Pressure Controller
- - Up to 4 Appliances
- - Up to 2 Applications
- - True bi-directional (+/- 1.0" wc)
- - 4-button LCD screen
V250 Constant Pressure Controller
- - Up to 6 Appliances
- - Up to 2 Applications
- - True bi-directional (+/- 1.0" wc)
- - 4" Color Touchscreen
V300 Constant Pressure Controller
- - Up to 4 Appliances
- - Up to 3 Applications
- - True bi-directional (+/- 1.0" wc)
- - 7" Color Touchscreen
V350 Constant Pressure Controller
- - Up to 15 Appliances
- - Up to 3 Applications
- - True bi-directional (+/- 1.0" wc)
- - 7" Color Touchscreen
AX42 Constant Speed Controller
- - Up to 4 Appliances
- - Up to 2 Applications
- - Fixed speed
- - On-board potentiometer
