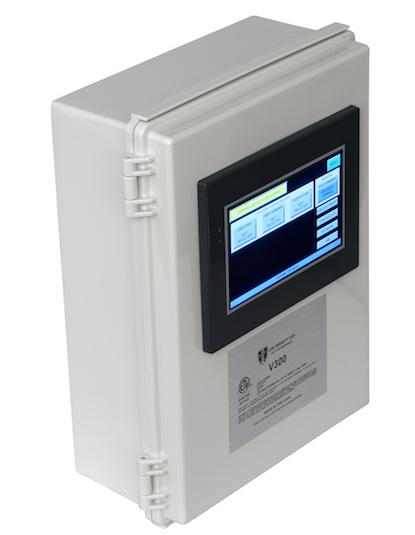

V300

Constant Pressure Controller

3 Applications

Up To

Industry's only

Up To

MORE INFO

4 Appliances

7" Color
Touchscreen

The V-Series Constant Pressure Controllers are used for mechanical draft and/or supply air system for heating appliances. Designed with EC-Flow Technology™, the V-Series Constant Pressure Controllers takes advantage of the US Draft Co bi- directional pressure transducer and proprietary PID technology to rapidly respond to varying pressures in the system. All V-Series Constant Pressure Controllers offer high- and low-pressure alarms and Modbus RTU communication via an RS485 serial port. The V-Series Constant Pressure Controllers are The Industry Standard in draft controls.

Using a 7-inch color touchscreen, the V300 can interlock with up to 4 appliances and can operate all 3 applications listed below:

VCS – The Vent Control System maintains a constant pressure in the exhaust common manifold or individual chimney/vent via a termination or inline inducer fan.

ODCS – The OverDraft Control System maintains a constant pressure in the exhaust common manifold or individual chimney/vent via an inline single or multi-blade damper.

PAS – The Pressure Air System maintains a constant pressure in the mechanical room or ducted supply air.
