OBD Opposed Blade Damper Multi-blade Up To
All keyboard_arrow_down design for keyboard_arrow_down MORE INFO 1,000˚F
continuous

Stainless Steel
Construction
Precision Control

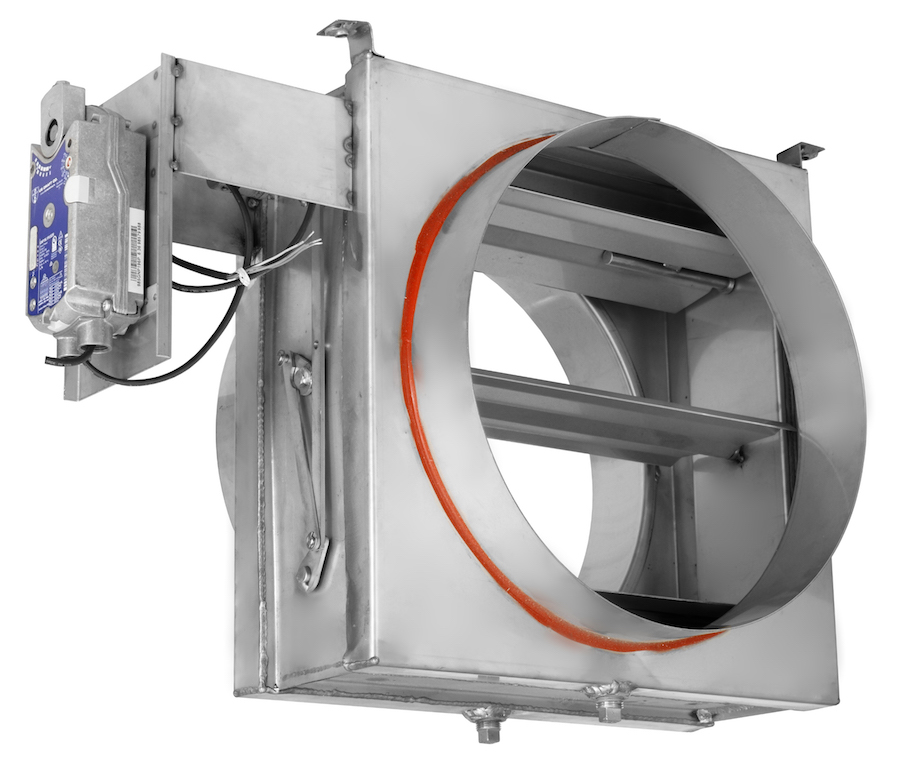

ABOUT The OBD Opposed Blade Damper from US Draft Co offers all stainless-steel construction with diameters up to 36” standard (custom sizes available). The OBD is ETL listed for all types of heating appliances including Category I, II, III & IV as well as Building Heating Appliances and gas & solid fuel fireplaces. The OBD features the fastest actuator in draft controls specifically designed by US Draft Co to provide immediate response to system changes. With a continuous temperature rating of up to 1,000˚F (1,400˚F intermittent), the OBD is a great solution for high-temperature AND high-efficiency appliances.

When combined with a V-Series controller, the US Draft Co OverDraft Control System (ODCS) maintains proper draft in the manifold during overdraft conditions.

For more information, visit the OverDraft Control Systems page.
Data Sheets
keyboard_arrow_down keyboard_arrow_down
EXT RANGE keyboard_arrow_down keyboard_arrow_down
SELECT SIZE
control-option

Control Options

V150 Constant Pressure Controller
  • - Up to 2 Appliances
  • - Up to 2 Applications
  • - True bi-directional (+/- 1.0" wc)
  • - 4-button LCD screen
V200 Constant Pressure Controller
  • - Up to 4 Appliances
  • - Up to 2 Applications
  • - True bi-directional (+/- 1.0" wc)
  • - 4-button LCD screen
V250 Constant Pressure Controller
  • - Up to 6 Appliances
  • - Up to 2 Applications
  • - True bi-directional (+/- 1.0" wc)
  • - 4" Color Touchscreen
V300 Constant Pressure Controller
  • - Up to 4 Appliances
  • - Up to 3 Applications
  • - True bi-directional (+/- 1.0" wc)
  • - 7" Color Touchscreen
V350 Constant Pressure Controller
  • - Up to 15 Appliances
  • - Up to 3 Applications
  • - True bi-directional (+/- 1.0" wc)
  • - 7" Color Touchscreen
AX42 Constant Speed Controller
  • - Up to 4 Appliances
  • - Up to 2 Applications
  • - Fixed speed
  • - On-board potentiometer
