CBX Termination Fan 7,900 cfm Up To
All keyboard_arrow_down Up To
keyboard_arrow_down MORE INFO 1,000˚F
continuous

Stainless Steel
Construction

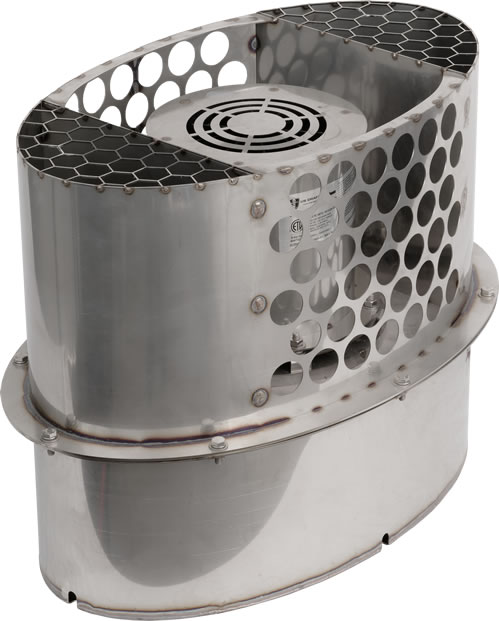

ABOUT The CBX Termination Fan from US Draft Co offers all stainless-steel construction with capacities up to 7,900 CFM. The CBX is ETL listed for all types of heating appliances including Category I, II, III & IV as well as Building Heating Appliances and gas & solid fuel fireplaces. With direct drive, belt-free motor and a continuous temperature rating of up to 1,000˚F (1,400˚F intermittent), the CBX can handle high temperature applications like kilns, ovens and other industrial systems. With the available 316L stainless steel housing and impeller, the CBX is The Industry Standard for Termination Fans.

When combined with a V-Series controller, the US Draft Co Vent Control System (VCS) maintains proper draft in the manifold during all operating conditions.

For more information, visit the Vent Control Systems page.
Data Sheets
keyboard_arrow_down keyboard_arrow_down
EXT RANGE
SELECT SIZE

* Product shown for dimensional purposes only, actual product may vary.

keyboard_arrow_down keyboard_arrow_down
Slide

Control Options

V150 Constant Pressure Controller
  • - Up to 2 Appliances
  • - Up to 2 Applications
  • - True bi-directional (+/- 1.0" wc)
  • - 4-button LCD screen
V200 Constant Pressure Controller
  • - Up to 4 Appliances
  • - Up to 2 Applications
  • - True bi-directional (+/- 1.0" wc)
  • - 4-button LCD screen
V250 Constant Pressure Controller
  • - Up to 6 Appliances
  • - Up to 2 Applications
  • - True bi-directional (+/- 1.0" wc)
  • - 4" Color Touchscreen
V300 Constant Pressure Controller
  • - Up to 4 Appliances
  • - Up to 3 Applications
  • - True bi-directional (+/- 1.0" wc)
  • - 7" Color Touchscreen
V350 Constant Pressure Controller
  • - Up to 15 Appliances
  • - Up to 3 Applications
  • - True bi-directional (+/- 1.0" wc)
  • - 7" Color Touchscreen
AX42 Constant Speed Controller
  • - Up to 4 Appliances
  • - Up to 2 Applications
  • - Fixed speed
  • - On-board potentiometer
